Rolling table for tightening coils of sheet metal
Description of the device

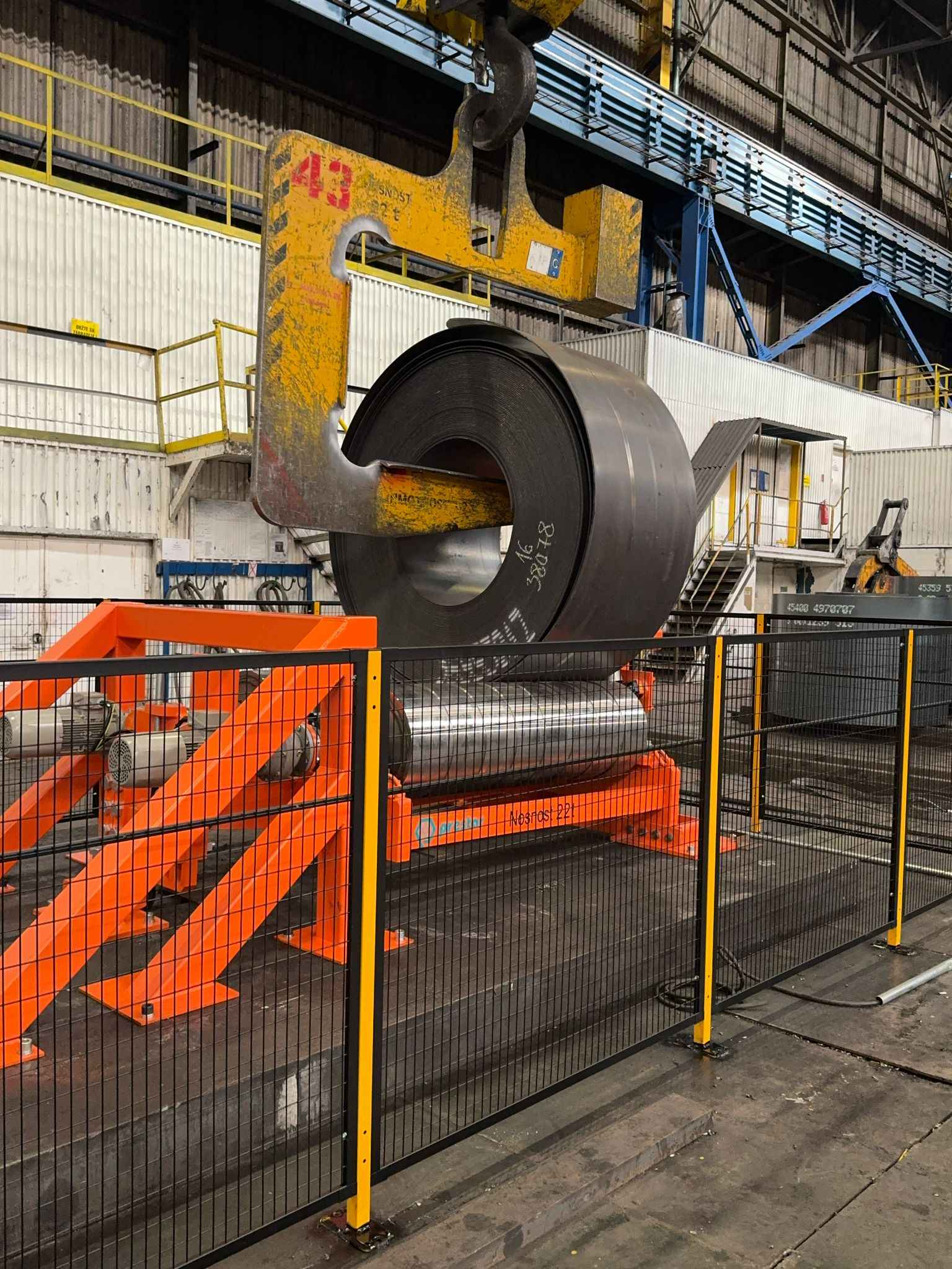

The device is used to tighten the coils for further taping. The tightening of the coils is carried out by rolling the coils on driven rollers. To prevent the roll from moving in the longitudinal direction when rotating on the rollers, an adjustable support roll is used on the side. The whole device is controlled from the control panel.
Technical parameters of the machine
- Type of load - steel coils
- Coil weight up to 40t
- Roll width: up to 2000 mm
- Cylinder speed: 18.3 rpm
Other equipment of the machine
- Safety fencing to protect the work area and ensure safe operation
- Equipped with limit switches
- Control: control from the control panel
- Adjustable roller tilt
- Spring shock absorption for machine stability
